Hydraulic Double Vane Pumps

Hydraulic Double Vane Pumps correspond to 1 rotation cycle of a pump with 2 suction pumps and 2 pump thrusters.

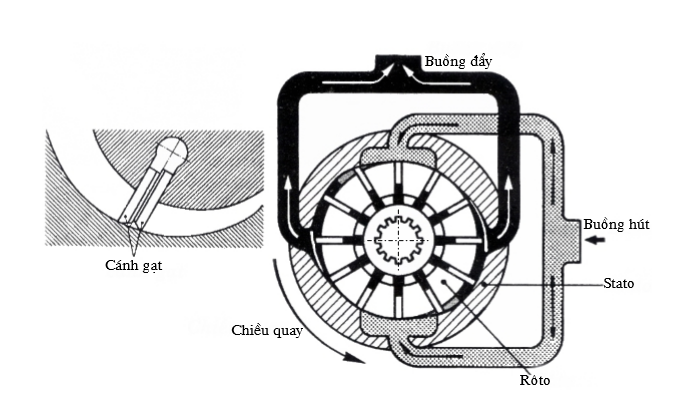

Parts of the Hydraulic Double Vane Pump

• The pump housing is not cylindrical inside
• Rotor, stator
• Suction chamber, push chamber
• Pump compartment consists of 2 suction chambers and 2 push chambers
• Flange cap
• Seal

Double Vane Pump components meet the need for two suction and two pushes.

Working Principle

The dual-acting vane pump starts working when the power is connected, the motion-controlled shaft causes the rotor to rotate. The suction process of a double-acting vane pump is similar to that of a single-acting vane pump with the principle that the rotor is always mounted eccentrically from the pump chamber in a cycloid pattern, with the center of the rotor coinciding. with mind shell.
The difference in the working principle of a single vane pump and a double vane pump is that in one duty cycle the pump must perform two suction and two pushes.
